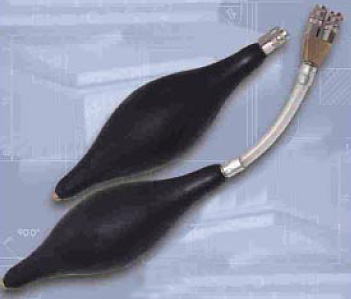

MULTI SIZE PLUG PLUGY G AND PLUGSY GM

pnevmat-91
pnevmat-92


These plugs are used for sealing and testing of pipelines and gas pipelines with a restricted inlet area. Six different dimensions cover a range from 50 to 500 mm. Owing to their innovative design and flexibility plugs are easy to handle and insert. Plugs are noted for their resistance to a high back pressure, quality make and a long service life.

All metal parts are made of stainless and non-sparking materials. If a measuring and a sealing plug are connected, pipelines can be tested with water or air. Simple use assures quality work from one inlet opening only.

There are two types of gas plugs available: a sealing and measuring plug.

Tehnical data - PLUGY G

Part
Number
 Nominal size
 Size Usage
Range
 Required
Inflation
Pressure
 Max. Allowable
Back Pressure
 Deflated Plug
 Opening for insertion
 Product Weight Inflation Valva
MIN diameter MAX diameter Diameter Length

EU mm mm bar bar mm mm mm kg Velikost navoja
511807 50-80 45 80 3.0 1.0 45 280 35 0.29 R1/4"
511808 80-130 75 130 2.5 1.0 76 360 40 0.37 R1/4"
511809 100-160 100 160 2.0 1.0 98 420 45 0.56 R3/8"
511810 150-210 145 210 2.0 1.0 140 510 50 0.78 R3/8"
511811 200-315 200 315 2.0 1.0 200 730 70 1.25 R3/8"
519420 315-500 315 500 1.5 0.8 315 950 90 1.45 R3/8"

Tehnical data - PLUGY GM

Part
Number		 Nominal size Size Usage
Range		 Required
Inflation
Pressure		 Max. Allowable
Back Pressure		 Deflated Plug Opening for insertion Product Weight Inflation Valva Bypass Diameter
Female
MIN diameter MAX diameter Diameter Length

EU mm mm bar bar mm mm mm kg
mm
511812 50-80 45 80 3.0 1.0 45 490 35 0.71 R1/4" 5
511813 80-130 75 130 2.5 1.0 76 570 40 0.79 R1/4"
5
511814 100-160 100 160 2.0 1.0 98 645 45 1.01 R3/8" 7
511815 150-210 145 210 2.0 1.0
140 760 50 1.22 R3/8" 7
511816 200-315 200 315 2.0 1.0
200 1060 70 1.72 R3/8" 7
519421 315-500 315 500 1.5 0.8 315 1280 90 1.90 R3/8" 7
