MULTI SIZE PLUGS FOR LARGER PIPELINE DIAMETERS PLUGY AND PLUGSY

cepi-1
cepi-4

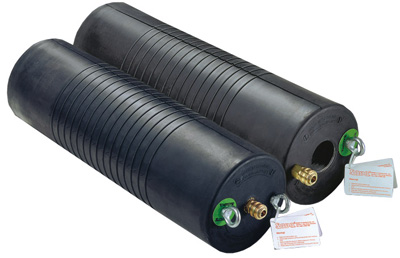

Superior plug surface pattern, proper choice of rubber compound, Rayon-Kevlar reinforcement, suitable lenght, low weight, excellent sealing ability, anticorrosive components, a wide range of sizes and guaranteed safety at work are properties united in Sava PLUGY and PLUGSY plugs. All plugs are equipped with quick action coupling for inflation, larger sizes have two couplings installed. The size and number of eyelet bolts depend on plug size. Plugs can be inserted through gullies of size 600 x 600 mm and since the are flexible, they can easily be bent at an angle up to 90 degree.

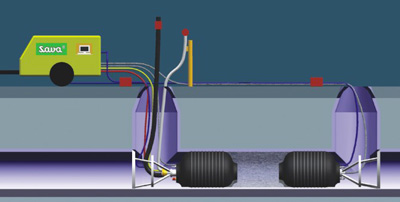

These all-purpose plugs are used for sealing and testing of pipeline tightness with air or water. Multi-size plugs are stretchable therefore only a few plugs are required to cover pipelines of different diameters.



OIL-RESISTANT PLUG

Available are also Plugy plugs up to diameter of 1000 mm which are made of Nytril rubber and noted for resistance to oil and its derivates.





cepi-2		 cepi-3
Part Number
 Protective sleeve Type Product Weight
510395 350-600 3.55
510396 375-750 4.63
510397 500-1000 5.48
527496 600-1200 18.6
510399 750-1500 24.5

Tehnical data: - PLUGY:

Part
Number
 Nominal
Size
 Size Usage Range
 Required Inflation Pressure Deflated plug
 Product Weight Eye Bolt Inflation
Valve
MIN diameter MAX diameter Diameter Lenght
EU mm mm bar mm mm kg M thread Thread Size
519423 40-70 40 70 2.50 35 195 0.30 6 R 1/4"
NEW DIMENSION
519424 70-150 70 150 2.50 68 335 0.60 6 R 1/4"
NEW DIMENSION
60417 100-200 100 200 2.50 92 535 1.10 6 R 1/4"
526850 150-200 150 200 2.50 142 385 1.80 8 R 1/4"
NEW DIMENSION
60418 150-300 150 300 2.50 142 575 1.90 8 R 1/4"
60419 200-400 200 400 2.50 192 635 3.00 8 R 1/4"
60599 300-525 300 525 2.50 272 675 6.00 8 R 1/4"
60422 350-600 350 600 2.50 322 865 8.40 10 R 1/4"
60606 375-750 375 750 2.50 342 1085 10.90 10 R 1/4"
60453 500-800 500 800 2.50 472 1185 17.30 10 R 1/4"
60425 500-1000 500 1000 1.50 472 1185 17.30 10 R 1/4"
78957 600-1200 600 1200 1.50 574 1500 39.00 10 2 x R 3/8"
78959 750-1500 750 1500 1.00 600 2300 65.00 10 2 x R 1/4"

Tehnical data: - PLUGSY:

Part
Number		 Nominal
Size		 Size Usage Range Required Inflation Pressure Deflated plug Product Weight Eye Bolt Inflation
Valve		 Bypass
Diameter
Female
MIN diameter MAX diameter Diameter Lenght
EU mm mm bar mm mm kg M thread Thread Size
526849 70-150 70 150 2.5 68 350 1.70 6 R 1/4" 1/2"
NEW DIMENSION
60429 100-200 100 200 2.50 92 550 2.60 6 R 1/4" 1"
526851 150-200 150 200 2.5 142 420 3.20 8 R 1/4" 1/2"
NEW DIMENSION
60432 150-300 150 300 2.50 142 590 4.40 8 R 1/4" 1"
60434 200-400 200 400 2.50 192 635 6.30 8 R 1/4" 2"
60630 300-525 300 525 2.50 272 675 11.90 8 R 1/4" 2"
60440 350-600 350 600 2.50 322 865 16.60 10 R 1/4" 2"
60632 375-750 375 750 2.50 342 1085 19.70 10 R 1/4" 2"
60454 500-800 500 800 2.50 472 1185 31.30 10 R 1/4" 2"
60442 500-1000 500 1000 1.50 472 1185 31.30 10 R 1/4" 2"
78958 600-1200 600 1200 1.50 574 1500 46.00 10 2 x R 3/8" 4"
78960 750-1500 750 1500 1.00 600 2300 75.00 10 2 x R 1/4" 4"

Back pressure measured in dry iron pipe (bar) - PLUGY / PLUGSY:

PLUGY's Pipe Diameter (mm)
40 70 100 150 200 250 300 350 400 500 600 800 1000 1200 1300 1400
Size















40-70 2 1.20













70-150
2.20 1.70 1.30











100-200

2.20 1.70 1.30










150-200


2.00 1.50










150-300

2.20 2.00 1.40 1.20








200-400



2.20 2.00 1.70 1.50 1.20






300-525





2.00 1.70 1.50 1.20





350-600






2.10 1.90 1.60 1.30




375-750







2.00 1.70 1.40




500-800








1.80 1.40 1.10



500-1000








1.00 0.80 0.60 0.50


600-1200









1.00 0.70 0.60 0.50

750-1500










1.00 0.90 0.70 0.60 0.50

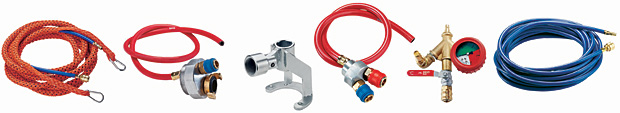

Accessories:

Code Description Weight
kg lbs
71248 Plug inflation hose with quick coupling and nipple, fi 8mm, 10m, blue 1.20 2.65
78070 Pressure read back hose with quick coupling and nipple, fi 8 mm, 10m 1.30 2.87
60452 Air supply hose fi 19 mm, 5 m, to pressurize the pipe
 1.40 3.09
76684 Air supply hose fi 8mm, 5 m, to pressurize the pipe 0.70 1.54
60449 Adapter for air testing R1 0.50 1.10
60450 Adapter for air testing R2 0.60 1.32
60443 Adapter for air testing R4 1.50 2.85
60310 Single controller with pressure gauge, relief and ball valve; 2.5 bar 0.90 1.98
74609 Single controller with pressure gauge, relief and ball valve; 1.5 bar 0.90 1.98
74853 Single controller with pressure gauge, relief and ball valve; 1 bar 0.90 1.98
519442 Deadman 2.5 bar single 1.20 2.65
60958 Poly-Lift hose, 10 m 1.85 4.07
