INFLATABLE AIR SHELTERS

resevalni-03

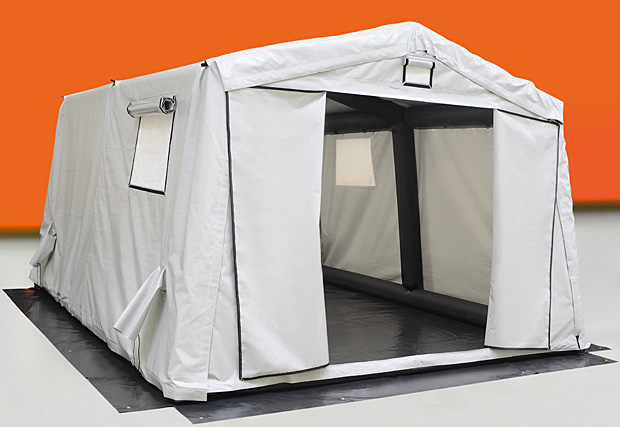

Due to simple handling, carrying and storing air shelters are an ideal solution in interventions. The inflatable frame is made from neoprene-impregnated nylon fabric, the floor from a high-quality PVC-impragnated fabric, and the baldachin from neoprene- or PU-impregnated fabric.

The zipper front and back doors are removable and adjustable in height and width. If requested, air shelters are equipped with windows, customer's designation or a corresponding logo. Additional equipment such as interior lamps and heating is available. The variants with a removable floor and baldachin also possible. Sava air shelters are offered in five standard sizes and different colours to meet your specific needs.



Tehnical data:

Type unit 12 16 22 33 42 52
Part No. 542130 542131 542132 542133 542134 542135
External Dimensions cm 397x392x270 490x392x270 590x392x270 650x570x270 790x570x270 990x570x270
Useable area cm 350x350x340 450x350x250
 550x350x250
 600x530x250
 750x530x250
 950x530x250
Max. inflation pressure

bar

 0.3 0.3 0.3 0.3 0.3 0.3
Test pressure bar 0.65 0.65 0.65 0.65 0.65 0.65
Air volume required l 1560 1735 1997 2537 3141 3521
Dimensions stowed cm 140x85x50 140x85x55 140x85x60 140x85x65 140x85x75 140x85x90
Inflation time min 5 to 10 5 to 10 5 to 10 8 to 12 10 to 15 10 to 15
Weight kg 92 103 120 150 175 203
