CLOSED RUBBER TANKS

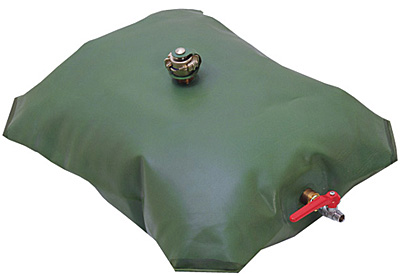

Closed tanks are suitable for storing of various liquids, including water. If required, they can be placev on open bed vehicles. They are pillow-shapped and equipped with two nipples: one in the middle of the upper surface for deflation and the other on the tank side for filling and emptying. They are light and when folded they take up little space. Maintenance is simple and their service life is long. A wide range of sizes is available; different shapes and sizes can be manufactured on request. Material PES fabric impregnated with NBR/PVC rubber compound Property Method Unit Value Tensile strength - longitudial DIN 53354 N/50mm Min 5000 Tensile strength - transversal DIN 53354 N/50mm Min 4500 Tearing - longitudial DIN 53356 N Min 160 Tearing - transversal DIN 53356 N Min 150 Splice tensile strength DIN 53354 N/50mm Min 5000 Temperature resistant DIN 53361 Degrees Celsius -30 - +90 Tehnical data: Type Part. Number Capacity Dimension Product Weight Empty Full Folded Lenght Width Lenght Width Height Volume m2 m m m m m m2 kg ZR 500 59652 0.5 1.7 1.4 1.40 1.10 0.55 0.03 10.66 ZR 1000 59653 1.0 2.3 1.7 2.00 1.40 0.55 0.04 17.63 ZR 2000 63360 2.0 2.8 2.1 2.35 1.65 0.80 0.07 25.86 ZR 3000 51095 3.0 2.9 2.6 2.40 2.10 0.90 0.13 31.98 ZR 5000 74037 5.0 3.3 3.2 2.75 2.65 1.00 0.20 43.80 ZR 10000 60783 10.0 4.3 4.1 3.75 3.55 1.00 0.40 70.36
