FLAT BAGS 8.0 BAR

Flat Bags are perfected standard air bags. Due to the construction the entire bag surface lifts evenly providing a constant lifting force independent of the lifting height.

The levelled bag surface provides a larger contact surface and an improved safety during use, especially when two or even three bags are placed one top of each other.

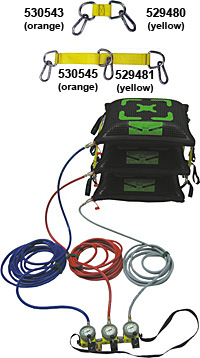

lift-32

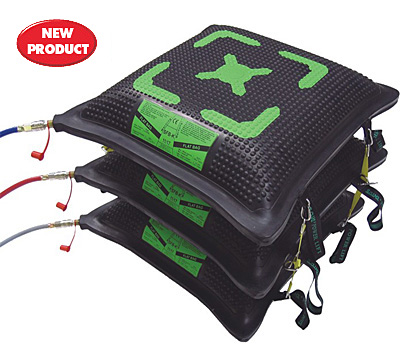

lift-31
These bags are made from an excellent wear resistant rubber compound and are Kevlar kord reinforced. The lifting performance graphs, which with the classic air bags sometimes were rather complicated, are therefore no longer required.



Model EU SFB-K
7/17		 SFB-K
11/17		 SFB-K
18/19		 SFB-K
32/19
Art. Number
 519883 519884 519885 519886
Size cm x cm 55 x 55 61 x 61 78 x 78 91 x 91
Thickness mm 28 28 28 28
Weight kg 8 10.60 17.10 23.80
Insertion height
 mm 30 30 30 30
Max. lifting height
 cm 17 17 19 19
Max. lifting capacity
 kg 20250 24690 41285 65900
Max. lifting capacity at max.lifting height
 kg 6728 10952 17672 31752
Size of flat area at max. lifting height
 cm x cm 29 x 29 37 x 37 47 x 47 63 x 63
Nominal content
 L 24.00 40.00 90.00 145.00
Max. air requirement
 L 224 350 740 1305
Max. inflation pressure
 bar 8 8 8 8
Inflation time* sec 13.00 17.00 43.00 65.000
Connection piecei colour yellow yellow orange orange
