HIGH PRESSURE AIR BAGS 8.0 bar

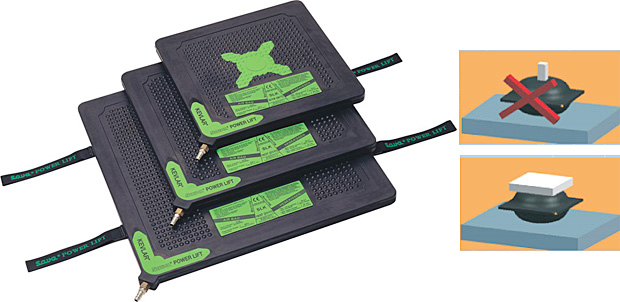

Sava high-pressure air bags are Kevlar cord reinforced. The patented construction utilizes a state-of-the-art design and guarantees an excellent operation and high lifetime. Metal parts are solid brass. The bags are thin, light and simple to use. A special dimpled surface assures a good gripping even when two bags are stacked on top of each other. There are fifteen sizes of air bags available both square and rectangular shape with a lifting capacity between one and 64 tons. The application range of Sava standard air bags is further expanded by the industrial air bags and custom-made bags for special applications, respectively.

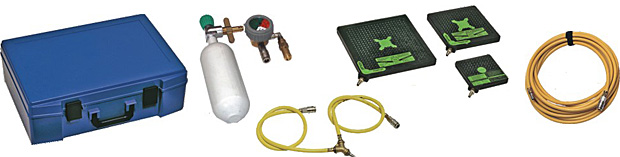

Sava Mini Lifting Set

Set Sava mini Lifting airbag consists of:

Code	Description	Quality	Weight(kg)
77973	Air bag Type SLK 1/7	1 x	0.60
77974	Air bag Type SLK 3/13	1 x	1.30
77975	Air bag Type SLK 6/15	1 x	2.40
517967	Inflation hose, 5m, yellow	1 x	0.80
523002	Air compressed cylinder 200bar, 1l	1 x	3.00
523000	Inflation and safety device with fingertight connection, pressure reducer, pressure gauge, safety valve and inlet	1 x	1.10
522999	Inflation distributor with two 1m inflation hoses, yellow	1 x	0.60
528871	Portable case 600 x 400 x 135	1 x	3.40

Tehnical data:

Kevlar Reinforced Air Bags
Model	EU	SLK 1/7	SLK 3/13	SLK 6/15	SLK 8/18	SLK 12/22	SLK 19/27	SLK 24/30	SLK 31/36	SLK 40/42	SLK 54/45	SLK 64/51
Art. Number		77973	77974	77975	76734	76735	76736	76737	76738	73739	76794	76740
Size	cm x cm	15 x 15	22.5 x 22.5	30 x 30	38 x 38	45 x 45	55 x 55	61 x 61	69 x 69	78 x 78	87 x 87	91 x 91
Thickness	mm	28	28	28	28	28	28	30	30	30	30	30
Weight	kg	0.60	1.30	2.40	4.00	5.30	8.10	11.20	13.30	18.20	22.50	25.30
Insertion height	mm	29	29	29	29	29	29	31	31	31	31	31
Max. lifting height	cm	7	13	15	18	22	27	30	36	42	45	51

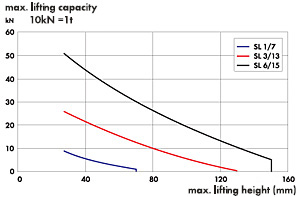

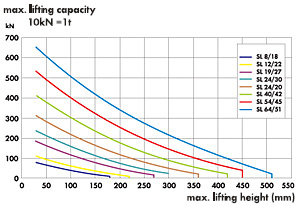

Max. lifting capacity	kg	1000	2820	5750	9620	12650	20250	24690	31410	41285	52345	65900
Nominal content	L	0.60	1.70	4.70	9.60	16.90	32.90	46.20	69.00	102.30	145.00	167.20
Max air requirement	L	5	15	42	86	152	296	416	621	921	1305	1505
Max. inflation pressure	bar	8	8	8	8	8	8	8	8	8	8	8
Test pressure*	bar	12	12	12	12	12	12	12	12	12	12	12
Bursting pressure*	bar	>32	>32	>32	>32	>32	>32	>32	>32	>32	>32	>32
Inflation time*	sec	0.60	1.20	2.00	5.00	7.00	15.00	20.00	28.00	50.00	65.00	80.00

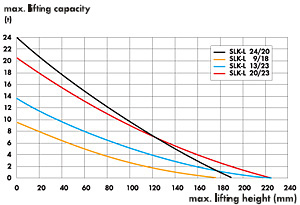

Model EU SLK-L 24/20 SLK-L 9/18 SLK-L 13/23 SLK-L 20/23 Art. Number 77983 519833 519834 519837 Size cm x cm 32 x 102 30 x 45 37.5 x 50 37.5 x 75 Thickness mm 28 28 28 28 Weight kg 8.50 3.50 4.90 7.40 Insertion height mm 29 29 29 29 Max. lifting height cm 20 18 23 23 Max. lifting capacity kg 24000 9600 13600 20700 Nominal content L 24.00 10.60 20.00 29.80 Max air requirement L 220 95 170 270 Max. inflation pressure bar 8 8 8 8 Test pressure* bar 12 12 12 12 Bursting pressure* bar >32 >32 >32 >32 Inflation time* sec 12.00 6.00 8.00 14.00

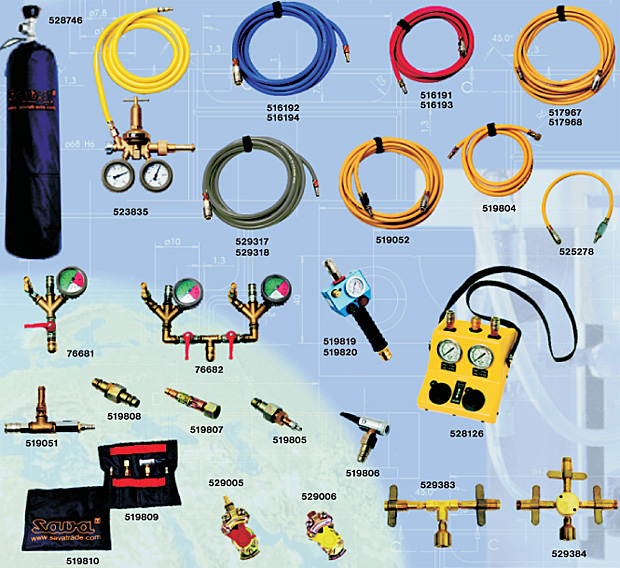

Accessories:

Code	Description	Weight(kg)
528746	Air compressed cylinder, 300 bar, 6 l	10.50
523835	Pressure reducer	1.80
517967	Inflation hose 5m, yellow	0.80
516191	Inflation hose 5 m, red	0.80
516192	Inflation hose 5 m, blue	0.80
529317	Inflation hose 5 m, grey	0.80
517968	Inflation hose 10 m, yellow	1.30
516193	Inflation hose 10 m, red	1.30
516194	Inflation hose 10 m, blue	1.30
529318	Inflation hose 10 m, grey	1.30
519052	Air hose with ball valve 10m	1.40
519804	Truck tyre inflator adapter	0.25
525278	Shut-off valve with 0.5m hose	0.30
76681	Single controller 8.0 bar, Fitting	0.90

Code	Description	Weight(kg)
76682	Double controller 8.0 bar, Fitting	2.00
519819	Hand held single Deadman 8.0 bar	1.00
519820	Hand held dual Deadman 8.0 bar	1.30
528126	Plastic box dual Deadman 8.0 bar	3.10
519051	Shut-off valve with safety valve	0.40
519808	Compressed air mains	0.05
519807	Truck tyre inflation adapter 2 m	0.05
519805	Truck tyre valve	0.05
519806	Truck tyre valve connection	0.05
529383	Dual connector 200/300 bar	1.00
529384	Tripple connector 200/300 bar	1.20
519809	Universal connector kit	0.30
519810	Adapter pouch	0.05
529005	Truck compressed air connection	0.42
529006	Truck compressed air connection - blind coupling	0.50
