SAVA SEALING WEDGES AND CONES

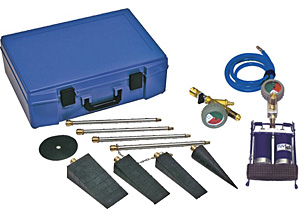

Sava sealing wedges and Sava cones are new products, which also complement Sava sealing program. They are used for quick sealing of cracks on stationary and mobile tank-vehicles, that is road as well as railway ones. Two geometries shall be provided, one in the shape of a wedge in three different sizes, which can be used for closing of cracks (15 – 60 mm of width) and the other in the shape of a cone, which can be used for sealing cracks of diameter 30 – 90 mm. tesnilne-11

tesnilne-12

Push charge bars, which are an integral part of the auxiliary equipment, provide safe functioning of a person from a far. The whole set, together with its equipment, shall quickly be stored after use in a portable case, therefore, storage of the system on road tankers or fire and police cars does not take up too much room.



Sava leak sealing lances SET consists of:

Code Description Quality Weight(kg)
528386 Wedge-shaped sealing bag Type 1 1 x 0.36
528387 Wedge-shaped sealing bag Type 2 1 x 0.42
528388 Wedge-shaped sealing bag Type 3 1 x 0.54
528389 Cone-shaped sealing bag
 1 x 0.27
528618 Push and inflation rod, 35cm, chain, deflation nipple
 1 x 0.45
528619 Push and inflation rod, 35cm 3 x 0.41
529510 Shut-off unit
 1 x 0.90
528873 Foot pump with safety valve 1.5bar
 1 x 2.50
528871 Portable case 600 x 400 x 135 mm 1 x 3.40
529087 Splash disc
 1 x 0.04

tesnilne-13

Technical data:

Part.
Number		 Nominal
Size		 Size Usage Range Required
Inflation
Pressure		 Deflated Plug Product
Weight		 Inflation
Valve
Height Width Lenght Width Height
EU mm mm bar mm mm mm kg Thread Size
528386 23 x 6 x 5 15-45 60-80 1,5 230 60 50 0.30 R 1/4"
528387 23 x 8 x 5,5 15-45 80-110 1,5 230 80 55 0.40 R 1/4"
528388 23 x 11 x 7 30-60 110-170 1,5 230 110 70 0.50 R 1/4"
528389 23 x Fi7 30-90 - 1,5 230 Fi7 Fi7 0.30 R 1/4"
Sava leak sealing program
