Specifikacija:



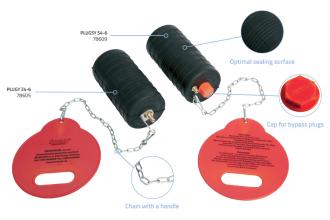

PLUGY Z - Zaptivni blind

Šifra

Nominalna veličina

Opseg upotrebe

Radni pritisak (bar)

Ispumpan blind

Težina

(kg)

Alka šraf

Ventil

min. R (mm)

maks. R (mm)

Prečnik (mm)

Dužina (mm)

M navoj

Veličina navoja

508123

Z1

20

33

2.5

19

65

0.01

nA

R 1/8”

60022

Z1 1/2

33

40

2.5

32

70

0.09

nA

R 1/4”

78582

Z2

50

2.5

45

72

0.11

nA

R 1/4”

78603

Z2-3

50

75

2.5

45

80

0.12

nA

R 1/4”

76767

Z3

75

2.5

70

85

0.23

nA

R 1/4”

78604

Z3-4

75

100

2.5

70

100

0.25

nA

R 1/4”

76769

Z4

100

2.5

85

145

0.43

nA

R 1/4”

78605

Z4-6

100

150

2.5

85

165

0.47

nA

R 1/4”

76771

Z6

150

2.5

142

190

1.23

nA

R 1/4”

78606

Z6-8

150

200

2.5

142

220

1.32

nA

R 1/4”

60616

Z8

175

204

2.5

174

220

2.1

6

R 1/4”

60618

Z10

219

254

2.5

218

250

3.4

6

R 1/4”

60619

Z12

275

305

2.5

274

290

5.1

6

R 1/4”



PLUGSY S - Protočni blind

Šifra

Nominalna veličina

Opseg upotrebe

Radni pritisak (bar)

Ispumpan blind

Težina

(kg)

Alka šraf

Ventil

Prečnik protočne cevi (ženski)



min. R

(mm)

maks. R

(mm)

Prečnik

(mm)

Dužina

(mm)



M navoj

Veličina navoja



78607

s2

50

2.5

45

80

0.2

nA

R 1/8”

1/8”



76768

s3

75

2.5

70

85

0.34

6

R 1/8”

1/2”



78614

s3-4

75

100

2.5

70

100

0.43

6

R 1/8”

1/2”



76770

s4

100

2.5

85

145

0.6

6

R 1/8”

1/2”



78609

s4-6

100

150

2.5

85

165

0.73

6

R 1/8”

1/2”



76772

s6

150

2.5

142

190

2.13

6

R 1/8”

1”



78610

s6-8

150

200

2.5

142

220

2.38

6

R 1/8”

1”



60621

s8

175

204

2.5

174

240

3.3

6

R 1/4”

2”



60622

s10

219

254

2.5

218

300

4.7

6

R 1/4”

2”



60623

s12

275

305

2.5

274

350

7.4

6

R 1/4”

2”





Povratni pritisak (bar) - pLUGY Z, pLUGsY s

Veličina

blinda

Prečnik cevi (mm)

25

40

50

75

100

150

200

250

300

1”

2.2

















11/2”



2.2















2”





1.8













2 – 3”





2

1.5











3”







1.5











3 – 4”







1.8

1.2









4”









1.9









4 – 6”









1.9

1.6







6”











2.2







6 – 8”











2.2

1.4





8”













1.3





10”















1.5



12”

















1.8

* mereno u suvoj gvozdenoj cevi



Dodatna oprema

https://www.savatech.com/images/products/pipe-plugs-small/plugs-of-smaller-dimensions-plugy-z-and-plugsy-s-inflation-hose.png

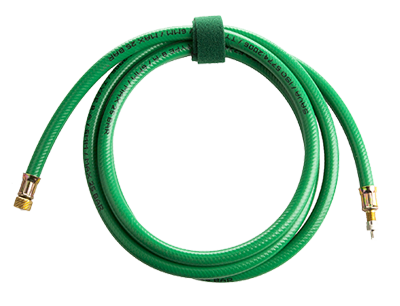

Inflation hose, FI 6 mm

2 m (6.6%26#39;), 0.2 kg (0.44 lbs)

78904

5 m (16.4%26#39;), 0.5 kg (1.1 lbs)

78905

https://www.savatech.com/images/products/pipe-plugs-small/plugs-of-smaller-dimensions--plugy-z-and-plugsy-s---hand-pump.png

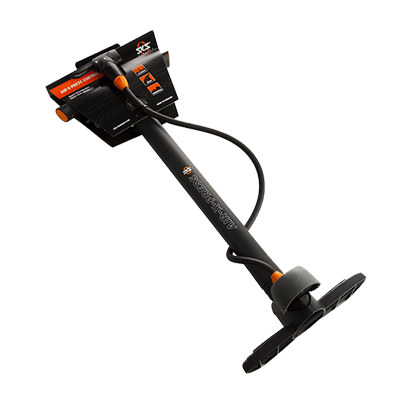

Hand pump

0.8 kg (1.8 lbs)

60010

https://www.savatech.com/images/products/pipe-plugs-small/plugs-of-smaller-dimensions--plugy-z-and-plugsy-s---replacement-caps.png

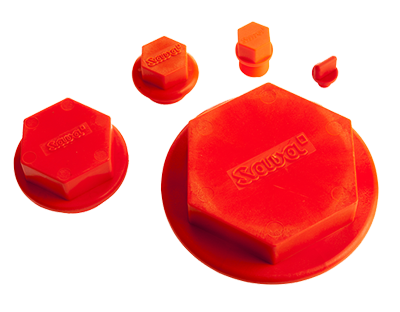

Replacement caps

CAP 1/8” - 539897

CAP 1/2” - 539898

CAP 1” - 539899

CAP 2” - 538797

CAP 4” -539900
